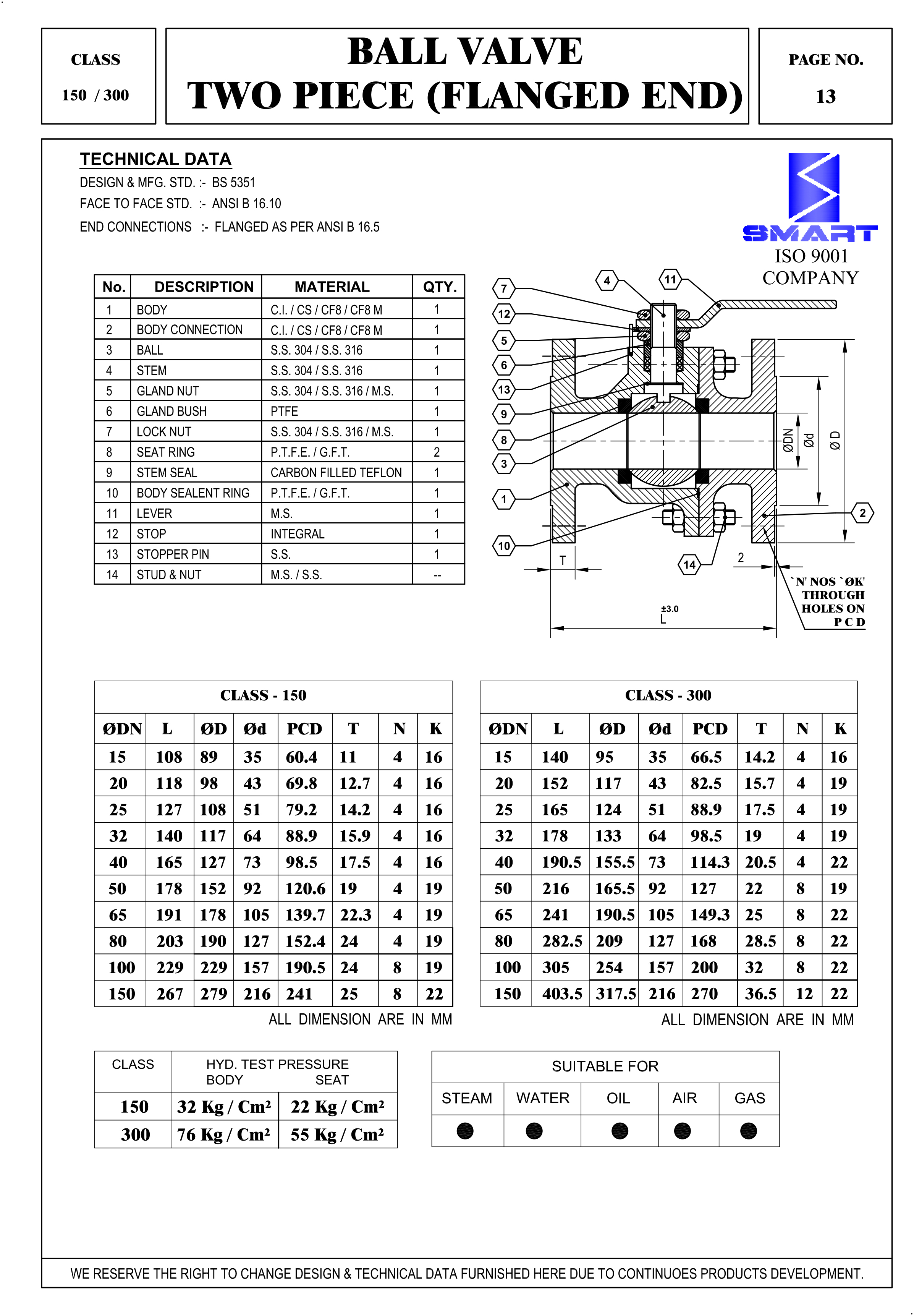

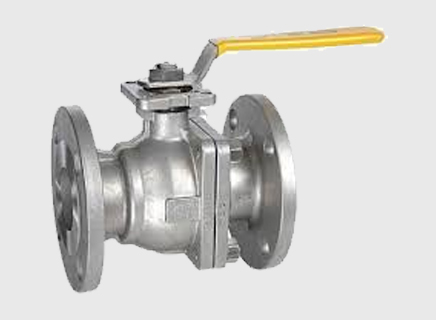

Two piece Flanged End ASA 150/300
| Class | 150/300 |
| Body | 32 Kg / cm² |
| Seat | 22 Kg / Cm² |
| Class | 300 |
| Body | 77 Kg / Cm² |
| Seat | 55 Kg / Cm² |

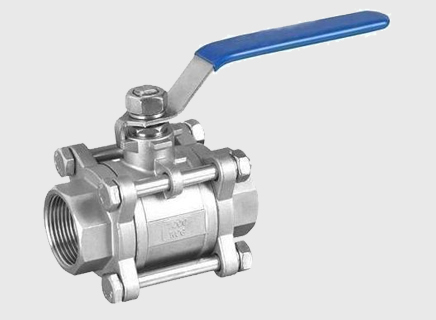

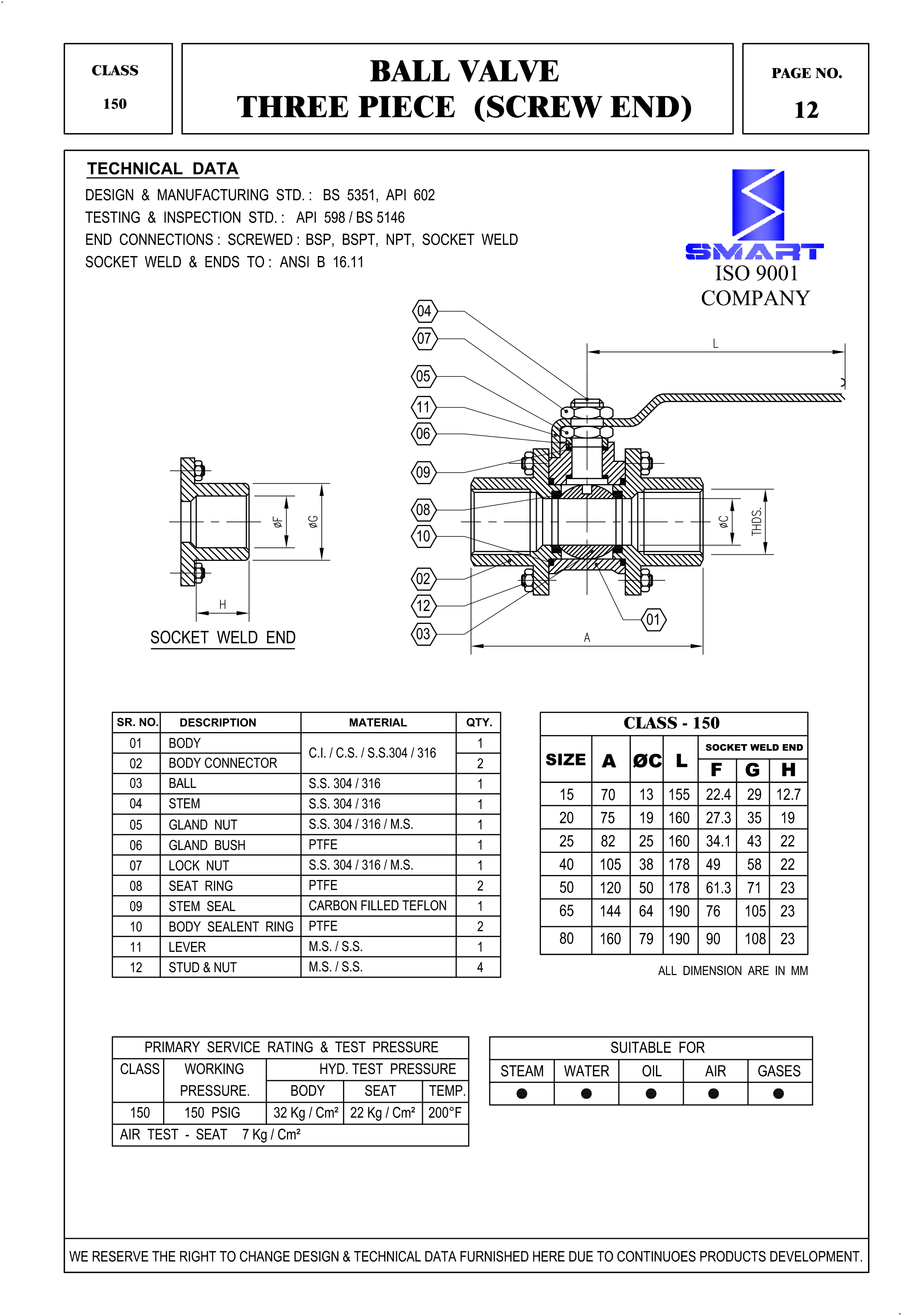

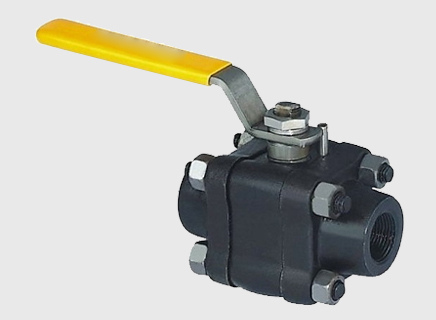

Three piece Screwed End
| Class | 150 |
| Working Pressure | 150 psig |
| Body | 32 Kg / Cm² |
| Seat | 22 Kg / Cm² |
| Temp. | 200° F |
| Air Test | Seat 7 kg / Cm² |

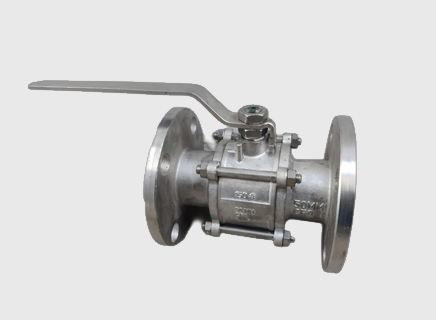

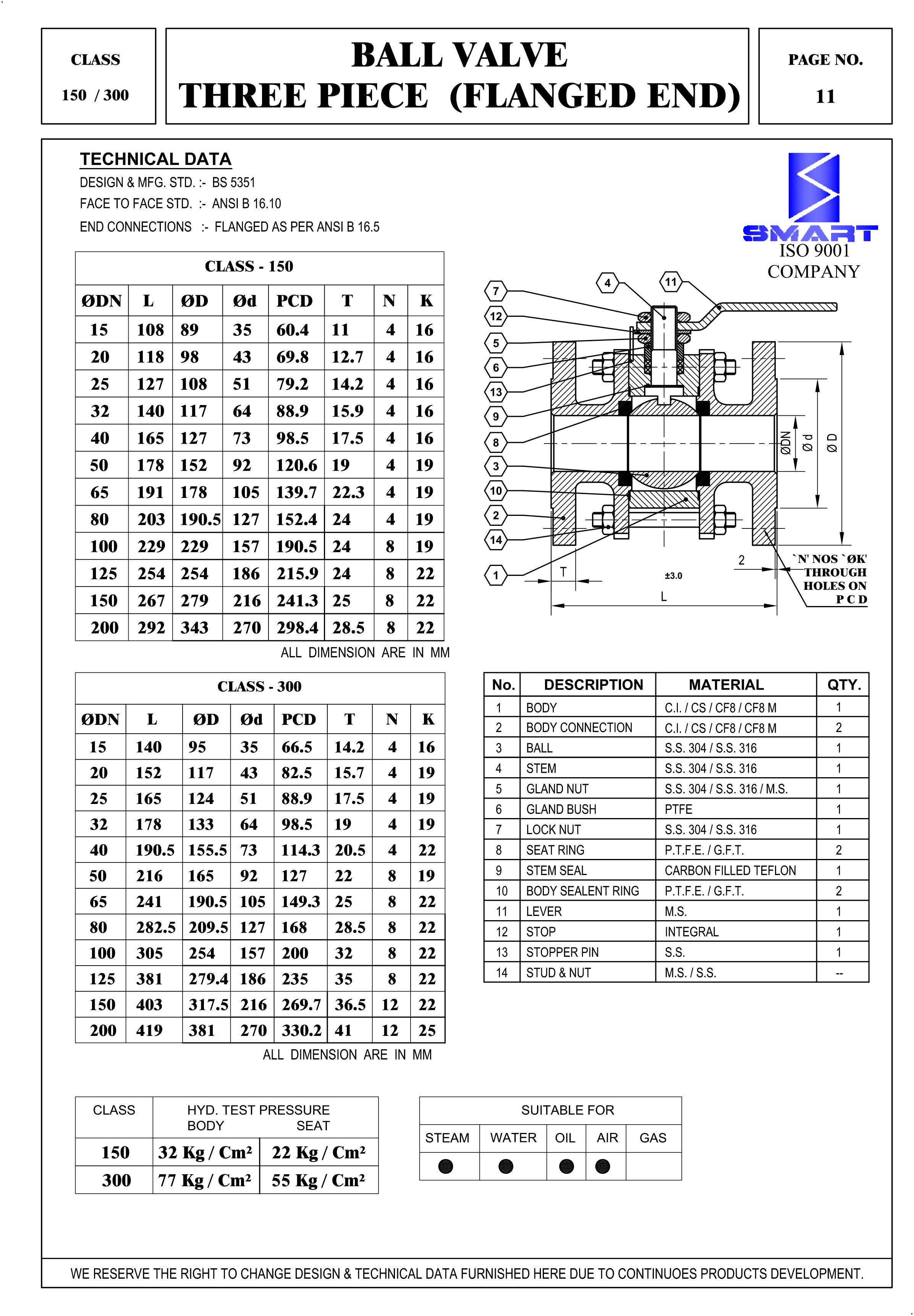

I.C Three piece Flanged End ASA 150/300
| Class | 150/300 |
| Body | 32 Kg / Cm² |
| Seat | 22 Kg / Cm² |
| Class | 300 |
| Body | 76 Kg / Cm² |
| Seat | 55 Kg / Cm² |
